First of all, this is a particularly unprofessional article. We should not be too concerned about it, but it is my own experience. SO, the gods raise their hands!
The first notebook is the ThinkPad E40, which is a reward for the mother's hard work at the annual conference. At that time, the mother was a partner who was a brand. At the annual meeting, he rewarded 5,000 yuan and a computer. In addition, he said that he had just bought a computer. Mom thought about it anyway, I also want to buy it (a freshman summer vacation, sophomore can bring a computer!) Also do not care about.
At that time, I called it as a small black. I thought to myself, don't be an E series!
The EDGE series just went on the market that year, plastic black. You know.
In fact, it is still good to get a hand, A surface and the C surface of the LOGO, the red dot on i have lights, there are lights, lights!
Although some people have been in the black series, to tell the truth, I think that at that time the same price of computers, at least my computer used by a group of people around the University, not as good as my durability, which is no lack of good sales in the year y460, g460 (The slag at the end of the 5th at the beginning of G...), saying that K series, acer looks like 4571? There are iron plates and bear paws do not know what model, because it is a local tyrant (mother's income of 800W) Hewlett-Packard ah.
Anyway, I was particularly annoying about noise. I wanted to buy aliens at first, but I couldn't bear to hear that fan. Now think about very regret, R4 show mold no longer. Anyway, if someone else's computer is on, and the fan screams, I can't sleep. My own, the volume can be turned up to 30% to ignore the fan. In particular, ACER, clearing the ash was still noisy, and the decibel measured over 75.
However, the use of the early 13th, the black did not start to force, there is a common problem is the graphics card Weld. When the service life of the cooling rack is reached, it is particularly easy to take off the solder and the power is not displayed. Repair this at least 5 times. More than 100 to 200 each time. As a result, I'm trying to change myself for cooling racks. X treasure is basically in hundred dollars. Said original, but you value you all understand. There is a shop is the original, imitation of the original are sold, but also sells a single tube, as shown on the graphics and CPU independent heat pipe, the seller said a single tube is better, heat pipe is relatively thick. I didn't buy it anyway, because the price is more expensive than others, and at that time I had already started to change my mind.
After buying a heat pipe, I also bought a heat-dissipating grease called Laird, with a copper piece, and the help for the graphics card was not bad, because my old pipe was under high load and the temperature was almost equal to 100 degrees. It's easy to shut down yourself. After using it, it is about 85. Of course, this 15 degrees is more imaginary, one is the heat pipe old loss, the other is that 300 pounds of people thin 20 pounds easy, 120 pounds of people thin 20 pounds is not easy reason. However, if everyone’s computers are the same as those of Yao’s, they are old, and the temperature is extremely high. You can buy one and try it out. There isn’t a few dollars anyway.
Tear the film on both sides and lay it down. The picture was taken earlier. This time it was because of laziness. There was no remake. Sorry.
This thing, X Bao directly search Laird can buy. ↠This is a link. In addition, the cards do not come and go, and our telecommunications fiber is so bad - -
Then, I got some copper pieces that were peeled off the cable. It's a waste for the power engineering team, but for you, it's treasure.
Everyone can ask the people around, it should be easy to get.
Then we cut a section and rolled him up
A little Alice? Use vise to flatten!

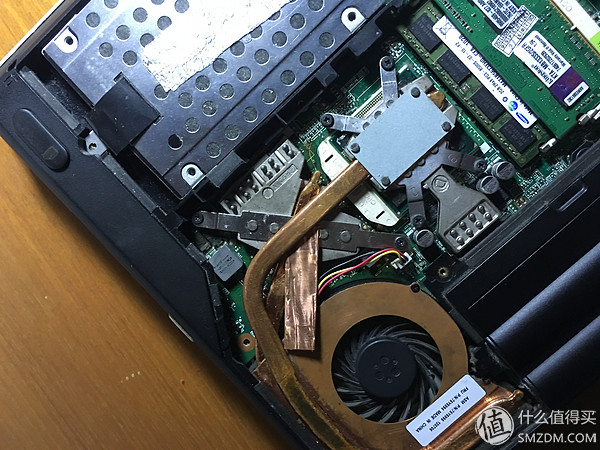

Finally, add it near the heat pipe and connect it with the fan.
No need to stick or fix, because your rear cover will hold it tightly. You can also cut a few more pieces like this and wrap it around the copper tube
Be careful with your hands. Don't be cut.
Regarding the installation process, I don't know how to shoot unless it's a video. It is a good roll, put on the copper tube, the best place to clamp, there is no place to clamp, directly on the back cover can be fixed.
In addition, after the actual measurement, together with the above thermal grease and copper, the dark black has not been so hot. The entertainment master tested the highest CPU at 83, which is 8 degrees warmer than before. The GPU with Laird thermal grease is relatively obvious. The highest one has seen 104 degrees and then turned off. It is now up to 87. More or less is still somewhat useful.
Come to a family portrait.
In addition, in addition to using such copper pieces, a competent partner can also buy some custom heat-dissipating copper tubes, DIY double copper tubes or more heat sinks.
That's right, this is the link
After such heat dissipation is solved, your old computer is not so easy because of the clock that caused the down clock.
Also talk about my other black guarantee smooth running method
First, with pure WIN7, I was the image of the official installation CD. The pure system is conducive to the smooth running of the computer.
Second, I replaced the P6000 with the I5 480. Although it was also the cause of my fever, I used the renovation to make up for it. When I changed U, I also changed one and cried. Now that the old U is already very cheap, you can try to buy a small partner, as long as you have confidence in your own hands-on ability and the heat of your computer. I am Xiaohei and I have confidence, although some people have always blackened its heat.
Third, add memory, needless to say, do not explain, we all understand.
The fourth, and most obvious, change to an SSD is the culprit that slows down your operation. Anyway, I personally measured that SSD is the single most obvious improvement. And now the SSD is also very cheap. At the beginning, a 500 yuan 256 disk has been considered a treasure, now it - -
If you still want your old book to fight for another three years, try the above method.
Finally, it is a small egg
Cool down with the simplest method
Did you find anything?
Yes, I removed the fixing screws of the optical drive
Because the black drive and the motherboard are not completely dead, removing the drive can allow more cool air to enter the motherboard for passive cooling. It also helps fans draw more cold air. Of course, your notebook drive has not been killed. Some computers are completely separated and not in circulation, so it's useless
Come here, thank you all
